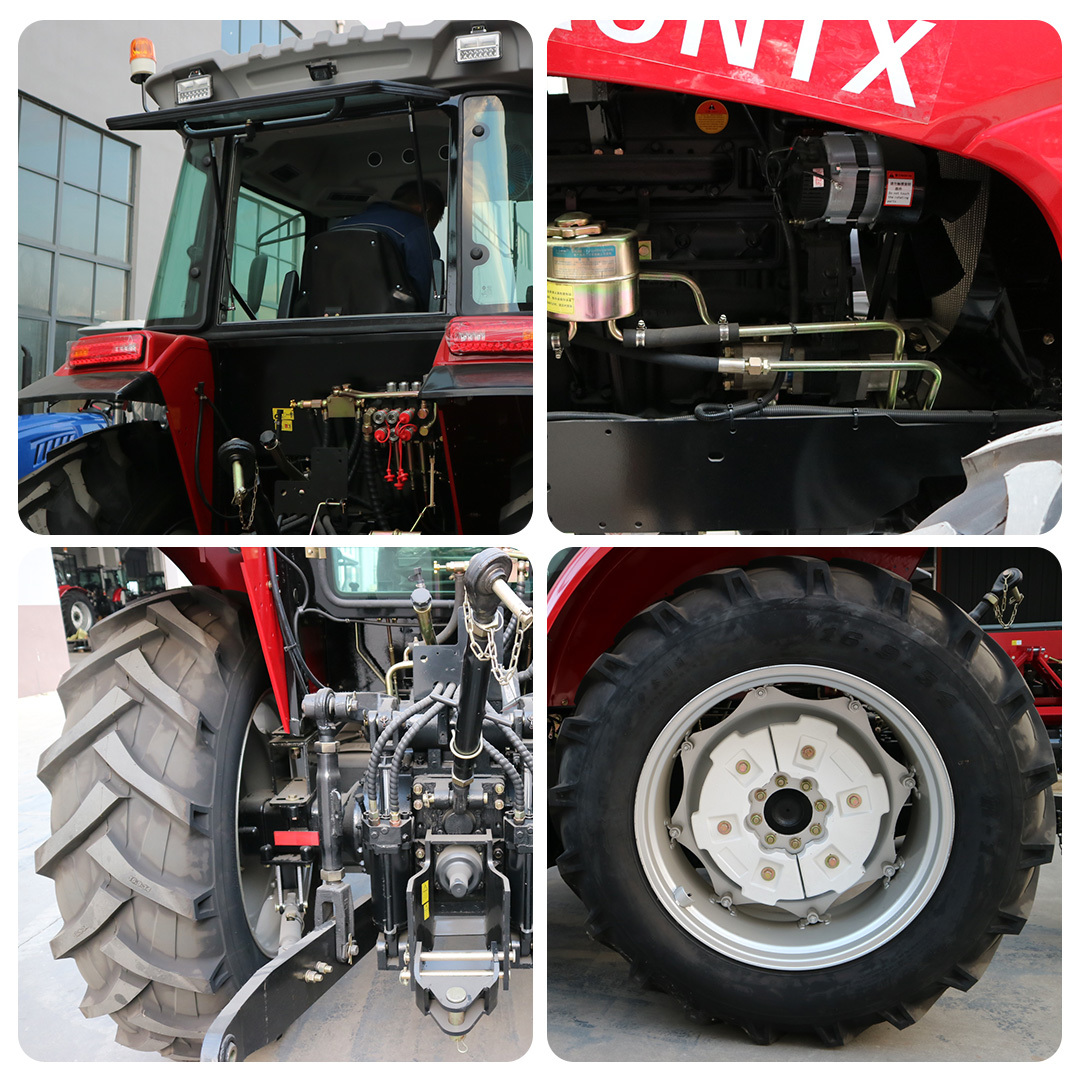

120~160 HP Wheeled Tractor
Product Feature
- Four-wheel drive + efficient engine, worry-free all-terrain operation. Four-wheel drive with YTO6 engine, stable and strong power output, in line with the latest environmental protection standards, easily cope with muddy, slope and other complex terrain, taking into account efficient operation and low emissions.
- Intelligent gear combination, precise adaptation to a variety of agricultural needs. 24F+8R main gearbox (optional 16F+8R creeper gear), covering high-speed transportation, low-speed deep plowing scenes; flexible multi-gear switching, significantly improves the efficiency of sowing, plowing and other operations.
- Powerful lifting hydraulic + three sets of output, all-round control, strong scalability. Supports three tillage depth modes of strong pressure/floating/position control, agricultural implements respond quickly and with high precision; 3 sets of hydraulic interfaces can synchronously drive flip plows, seeders and other equipment to meet complex agricultural needs1112.
- Multi-gear PTO + heavy-load design, suitable for all-scenario agricultural machinery use. PTO supports 760/1000/850/540 gears, compatible with traditional and high-efficiency agricultural machinery; front and rear counterweights enhance the stability of the whole machine, heavy-load operation without bumps, and overall durability is improved
The main parameter
Model | Unit | RTX120-TD6 | RTX130-TD6 | RTX140-TD6 | RTX150-TD6 | RTX160-TD6 | |
| Type | / | (4×4) | ||||
Kw | Kw | 88.2 | 95.6 | 103 | 110.3 | 117.7 | |
Dimension(L×W×H) | Mm | 4750×2100×3060 | |||||
Wheel Base | Mm | 2600 | |||||
Min.Ground Clearance | Mm | 420 | |||||
Minimum Operating Mass | Kg | 4660 | |||||
Tread | Mm | Front Tread:1620(1620~1820)Adjustable | |||||
| Clutch Type | / | Dry-Type,Double-Acting | ||||
Engine | / | YTO6Cylinder | |||||
Rated Speed | R/Min | 2200 | |||||
| Gear | / | 24F+8R(Option:16F+8R) | ||||
Pto Type | / | 8Spline,φ38,I Type(Option:6 Spline) | |||||
Pto Rated Power | Kw | ≥75 | ≥81.3 | ≥91.8 | ≥97.8 | ≥100.3 | |
Pto Speed | R/Min | 76011000 Or 7601850 Or 54011000 | |||||
| Three Point Linkage | / | Rear,Three-Point Suspension,Cat2 | ||||
Hydraulic Output | / | 3-Group Valve | |||||
Hydraulic adjustment | / | Forced Hydraulic System,Position Control, | |||||
Max.Lifting Force | Kn | ≥21.2 | ≥23.0 | ≥24.8 | ≥26.5 | ≥28.3 | |
| Standard Tyre Size | / | 12.4-24116.9-34 | ||||
Optional Tyre(I) | / | 13.6-24116.9-38 | |||||
Other Options | / | Cabin,Air Brake,Rop,Sunroof | |||||
The parameter table is for reference only, and the actual specifications may be adjusted due to technological upgrades.
Please refer to the final confirmed information for accuracy.
FAQ
If you have any questions, you can check our product's frequently asked questions
Do you have English-speaking service technician?
Yes, We have English speaking engineer team, who will be 24 hours online service.
How Can We Guarantee Quality?
Our company has more than 20 precision processing equipment.
When the machine parts are processed, they will be strictly checked by the quality inspection department to ensure the accuracy and quality.
After the machine is completed, we need at least two days to run the machine to ensure the smooth production of the machine.
What Can You Buy From Us?
Our company mainly produces automatic carton box printing slotting die cutting machine, automatic carton box printing slotting die cutting folder gluier with auto bundle machine , automatic 3/5/7 ply corrugated cardboard production line, automatic carton box folder gluer machine.
What After-sales Services Can We Provide?
When the machine is finished, we can arrange engineers to go abroad to install and debug the machine.
lf the parts of the machine are damaged, we will immediately send the parts to the customer by international express.
lf the machine has some operation problems, we will take some videos to guide customers to operate the machine.
How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
Attention should be paid to the delivery of carton machinery？
1. Use a wooden box (or wooden frame) to fix the carton machinery and equipment in the container, and the size should be appropriate so that it will not shake or fall during transportation. If the goods are relatively large and heavy, they need to be reinforced and the wooden frame must be fumigated.
2. Carton machinery and equipment are large in size and basically shipped by sea. Moisture-proof and sealing are very important. Of course, shock-proof is also very important. In order to prevent moisture, it is necessary to wrap several layers of PE form on all equipment, and then wrap a layer of bubble film for cushioning and shockproofing. Do not apply anti-rust oil, etc. If it leaks in the container, it will be fined.
3. Make a detailed list, list each item to be boxed one by one, and count them one by one when loading the container to prevent missing packaging and more packaging later. Auxiliary materials such as dunnage can be used to secure the goods in wooden box packaging.
What are the characteristics of the five-layer corrugated cardboard production line?
The five-layer corrugated cardboard production line is a production line consisting of preheating, corrugating, gluing, gelatinization, bonding, drying, shaping, pressing, slitting, and cutting into the required specifications of cardboard. It is divided into high, medium and low grades, speed ranging from 80~250m/min, cardboard width ranging from 1400~2500mm, etc., which can be selected by customers.
This assembly line is suitable for mass automated production and can produce excellent corrugated cardboard that meets the standards. It has high production efficiency and good cardboard quality. It adopts centralized control, simple operation, convenient maintenance, and reliability, which greatly reduces the labor intensity of workers. This production line adopts the current new energy-saving method and uses high-temperature heat transfer oil to provide the heat source for the whole machine. Compared with steam heating, it saves more than 40% of energy, greatly reduces energy consumption and reduces production costs. It is an economical ideal product today, suitable for large and medium-sized cartons Factory use.
