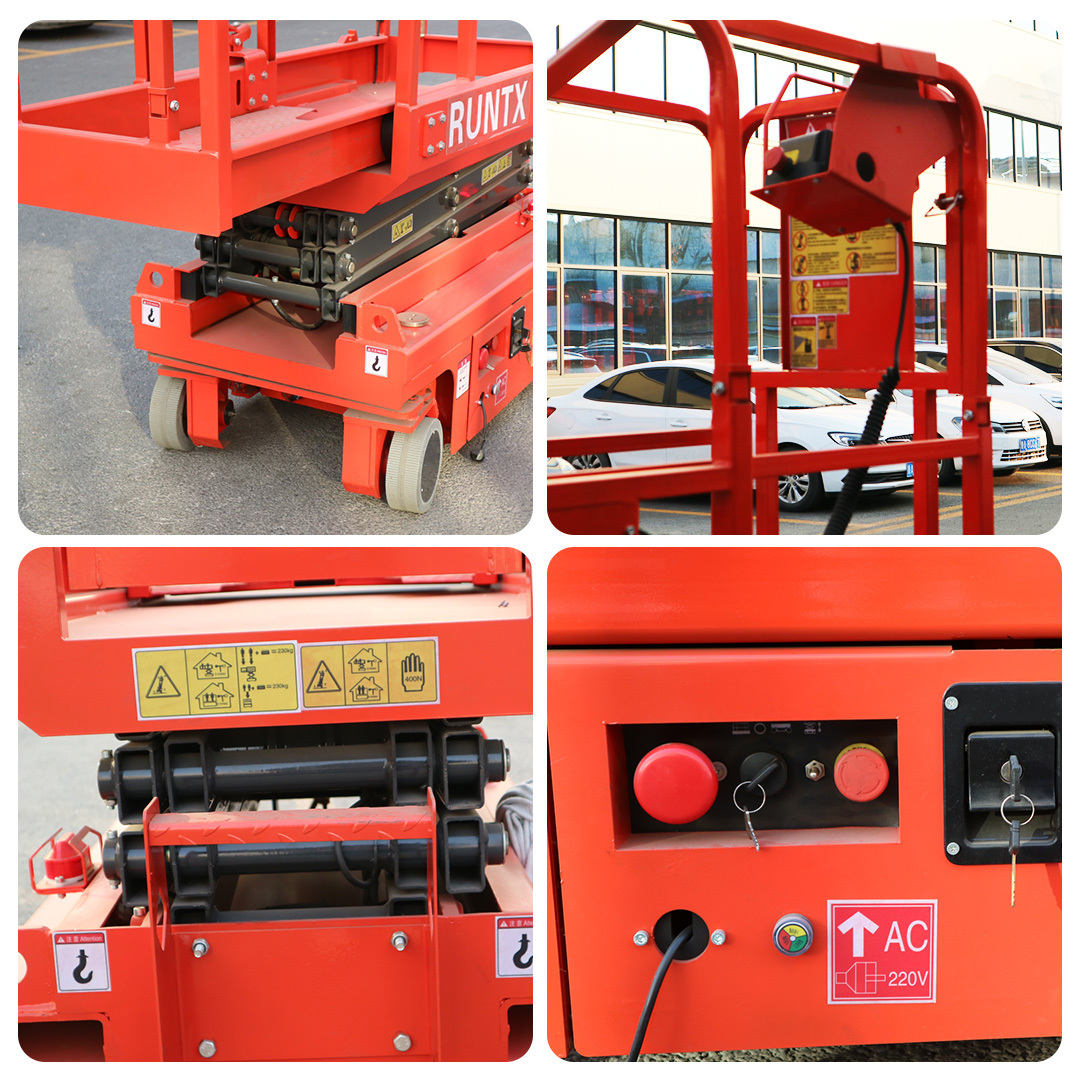

230kg 8m Mini Wheel Self-Propelled Scissor Lifts
Product Feature
- This machine is equipped with a pedal extension platform that can be quickly deployed to the operating position, allowing for efficient work setup and operation. This design allows for smoother task switching without manual adjustment, greatly improving work efficiency.
- The rotating chassis is a clever design of this machine that simplifies daily maintenance. It provides better access to components, reduces downtime, ensures that routine inspections and repairs are more convenient, and maximizes the availability of the machine.
- The compact design allows the machine to work flexibly in limited spaces and adapt to a variety of environmental needs. Whether indoors or in narrow outdoor areas, it can ensure smooth operation and improve the adaptability of the machine.
- The machine has a 25% slope climbing ability, demonstrating superior traction and stability, and can easily cope with complex terrain. Even on rugged ground, operations can continue, avoiding stagnation caused by terrain problems.
The main parameter
Model |
| GTJZ1416W |
Max. working height | m | 15.7 |
Max. platform height | m | 13.7 |
Working load capacity | kg | 227 |
Extended platform working load | kg | 113 |
Platform dimension(L*W*H) | m | 2.27*1.12*1.13 |
Overall dimension(L*W*H) | m | 2.43*1.22*2.66 |
Overall dimension | m | 2.43*1.22*2.09 |
Extended platform size | m | 0.9 |
Min. ground clearance | m | 0.1/0.02 |
Wheelbase | m | 2.26 |
Turning radius(inner wheel/outer wheel) | m | 0.45/2.9 |
Lifting motor | V | 24 |
Driving motor | kw | 4.5 |
Lifting speed | m/min | 6/9 |
Max. driving speed (Closed state) | km/h | 2.7 |
Driving speed(Lifting state) | km/h | 0.8 |
Battery attributes |
| Lead-acid maintenance-free |
Battery capacity | V/A |
|
Battery charger | V/A | 24/30 |
Max. gradability | % | 25 |
Max. allowable working angle | ° | 1.5/3 |
Operating weight | kg | 3210 |
The parameter table is for reference only, and the actual specifications may be adjusted due to technological upgrades.
Please refer to the final confirmed information for accuracy.
FAQ
If you have any questions, you can check our product's frequently asked questions
Do you have English-speaking service technician?
Yes, We have English speaking engineer team, who will be 24 hours online service.
How Can We Guarantee Quality?
Our company has more than 20 precision processing equipment.
When the machine parts are processed, they will be strictly checked by the quality inspection department to ensure the accuracy and quality.
After the machine is completed, we need at least two days to run the machine to ensure the smooth production of the machine.
What Can You Buy From Us?
Our company mainly produces automatic carton box printing slotting die cutting machine, automatic carton box printing slotting die cutting folder gluier with auto bundle machine , automatic 3/5/7 ply corrugated cardboard production line, automatic carton box folder gluer machine.
What After-sales Services Can We Provide?
When the machine is finished, we can arrange engineers to go abroad to install and debug the machine.
lf the parts of the machine are damaged, we will immediately send the parts to the customer by international express.
lf the machine has some operation problems, we will take some videos to guide customers to operate the machine.
How long is the delivery time?
lf the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
lf the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
Whether to support customized services？
Yes, OEM service accepted and supported. Some customers have special requirements for carton machines, such as processing oversized cartons, high-speed high-definition printing, etc. We can customize carton machines according to the specific requirements of customers.
The difference between single corrugated box and double corrugated box?
1. Different structure: It is not difficult to see from the above definition that single corrugated cardboard box is mainly composed of single corrugated cardboard, and double corrugated cardboard box is mainly composed of double corrugated cardboard;
2. Different characteristics: The edge compression strength and rupture strength of double corrugated boxes are higher than that of single corrugated boxes.
3. The scope of application is different: double corrugated boxes are mainly used for single-piece packaging with lighter weight and easily broken contents. Single corrugated boxes are mainly used to hold small items.
What is the features of automatic carton gluing machine?
1. Adequate protective measures can avoid the danger of operation.
2. There is sufficient and smooth space for personnel to move from the cardboard to the front of the paper bed.
3. It is convenient to set and adjust the size, including the setting of baffle, folding arm, cardboard, and counting discharge quantity.
Attention should be paid to the delivery of carton machinery？
1. Use a wooden box (or wooden frame) to fix the carton machinery and equipment in the container, and the size should be appropriate so that it will not shake or fall during transportation. If the goods are relatively large and heavy, they need to be reinforced and the wooden frame must be fumigated.
2. Carton machinery and equipment are large in size and basically shipped by sea. Moisture-proof and sealing are very important. Of course, shock-proof is also very important. In order to prevent moisture, it is necessary to wrap several layers of PE form on all equipment, and then wrap a layer of bubble film for cushioning and shockproofing. Do not apply anti-rust oil, etc. If it leaks in the container, it will be fined.
3. Make a detailed list, list each item to be boxed one by one, and count them one by one when loading the container to prevent missing packaging and more packaging later. Auxiliary materials such as dunnage can be used to secure the goods in wooden box packaging.
What are the characteristics of the five-layer corrugated cardboard production line?
The five-layer corrugated cardboard production line is a production line consisting of preheating, corrugating, gluing, gelatinization, bonding, drying, shaping, pressing, slitting, and cutting into the required specifications of cardboard. It is divided into high, medium and low grades, speed ranging from 80~250m/min, cardboard width ranging from 1400~2500mm, etc., which can be selected by customers.
This assembly line is suitable for mass automated production and can produce excellent corrugated cardboard that meets the standards. It has high production efficiency and good cardboard quality. It adopts centralized control, simple operation, convenient maintenance, and reliability, which greatly reduces the labor intensity of workers. This production line adopts the current new energy-saving method and uses high-temperature heat transfer oil to provide the heat source for the whole machine. Compared with steam heating, it saves more than 40% of energy, greatly reduces energy consumption and reduces production costs. It is an economical ideal product today, suitable for large and medium-sized cartons Factory use.
